Three-Layer Solid Wood Formwork Panel
Reusable three-ply solid wood formwork panels with a melamine resin-coated face for slab, wall, beam and concrete forming systems.
Request a QuoteProduct Overview
Our Three-Layer Solid Wood Formwork Panel is designed for professional concrete construction and modular formwork applications. The panel consists of three cross-laminated solid wood layers — the two outer layers run in the same direction, while the middle layer runs perpendicular to them. This balanced construction helps reduce deformation and improves dimensional stability during repeated handling on construction sites. The panel faces are finished with a melamine resin coating, while the edges can be sealed to reduce moisture penetration. The 500 mm modular width and European-style dimensions make this panel suitable for a wide range of traditional and system formwork applications. It is particularly suitable for customers looking for an alternative to conventional film faced plywood where a thicker, rigid and reusable solid-wood formwork panel is required.
Key Features
Three-Ply Solid Wood Construction
Cross-laminated solid wood layers provide a rigid and stable panel suitable for construction site handling.
European Formwork Dimensions
The 500 mm width with 1500-3000 mm lengths is suitable for many European-style concrete formwork systems.
Melamine Resin-Coated Surface
The melamine resin-coated face helps reduce direct moisture absorption and facilitates concrete release and cleaning after use.
Sealed Panel Edges
Edge treatment helps reduce water penetration into exposed wood areas during construction use.
Reusable Formwork Panel
Designed for repeated concrete forming applications when panels are correctly handled, cleaned, stored and treated.
Easy On-Site Processing
Solid wood construction allows panels to be cut and adapted on site when special dimensions or formwork details are required.
Three-Layer Construction
A balanced longitudinal / transverse / longitudinal construction controls movement of the solid wood and provides greater stability than a single-layer solid timber panel.
Top Layer
Solid softwood strips arranged longitudinally.
Middle Layer
Solid wood arranged across the direction of the face layers to improve panel stability.
Bottom Layer
Solid softwood strips arranged longitudinally to balance the construction.
Specifications
| Parameter | Details |
|---|---|
| Product | Three-Layer (3-Ply) Solid Wood Formwork Panel |
| Material | Spruce and Pine |
| Surface | Melamine resin-coated surface |

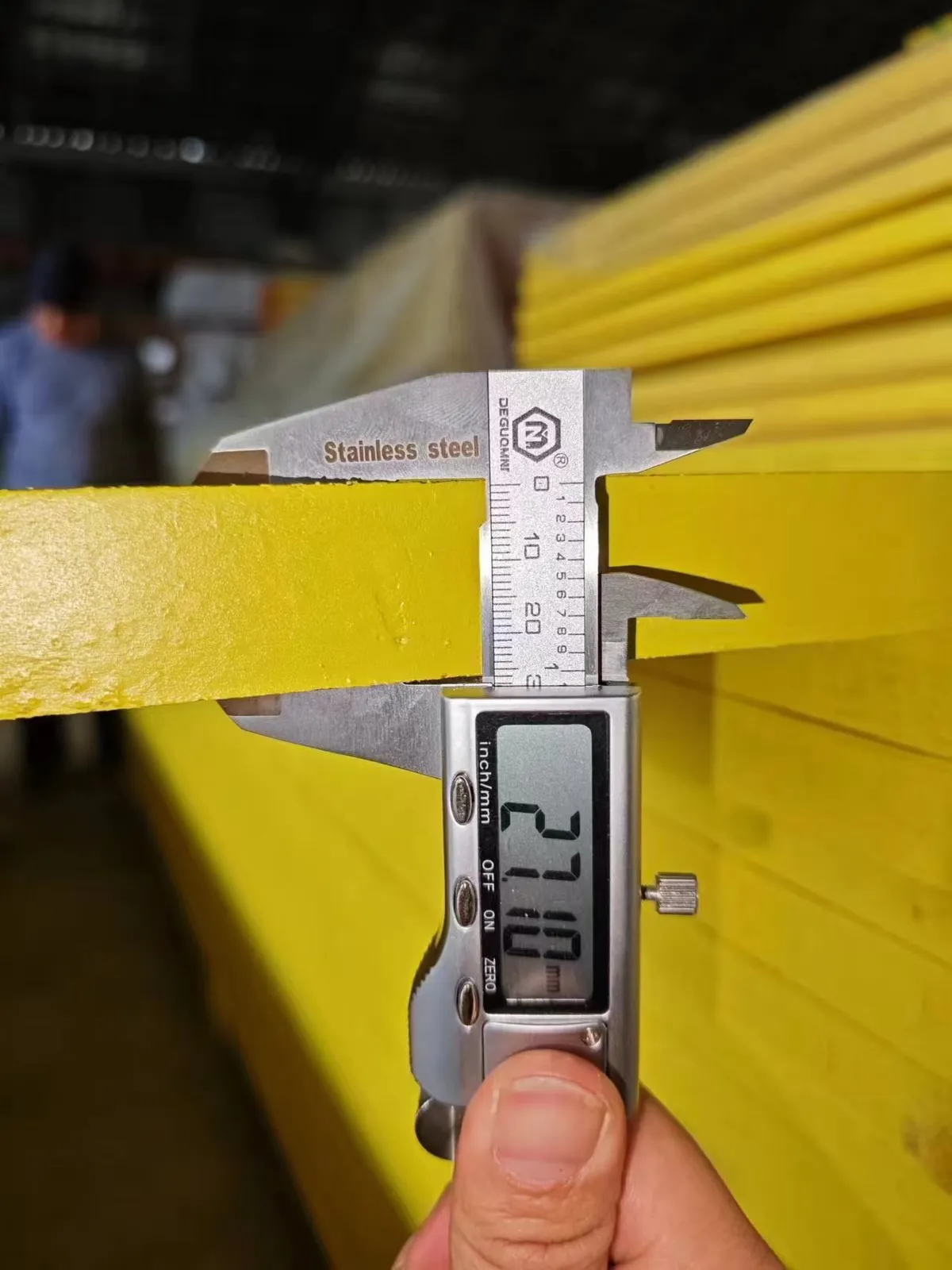

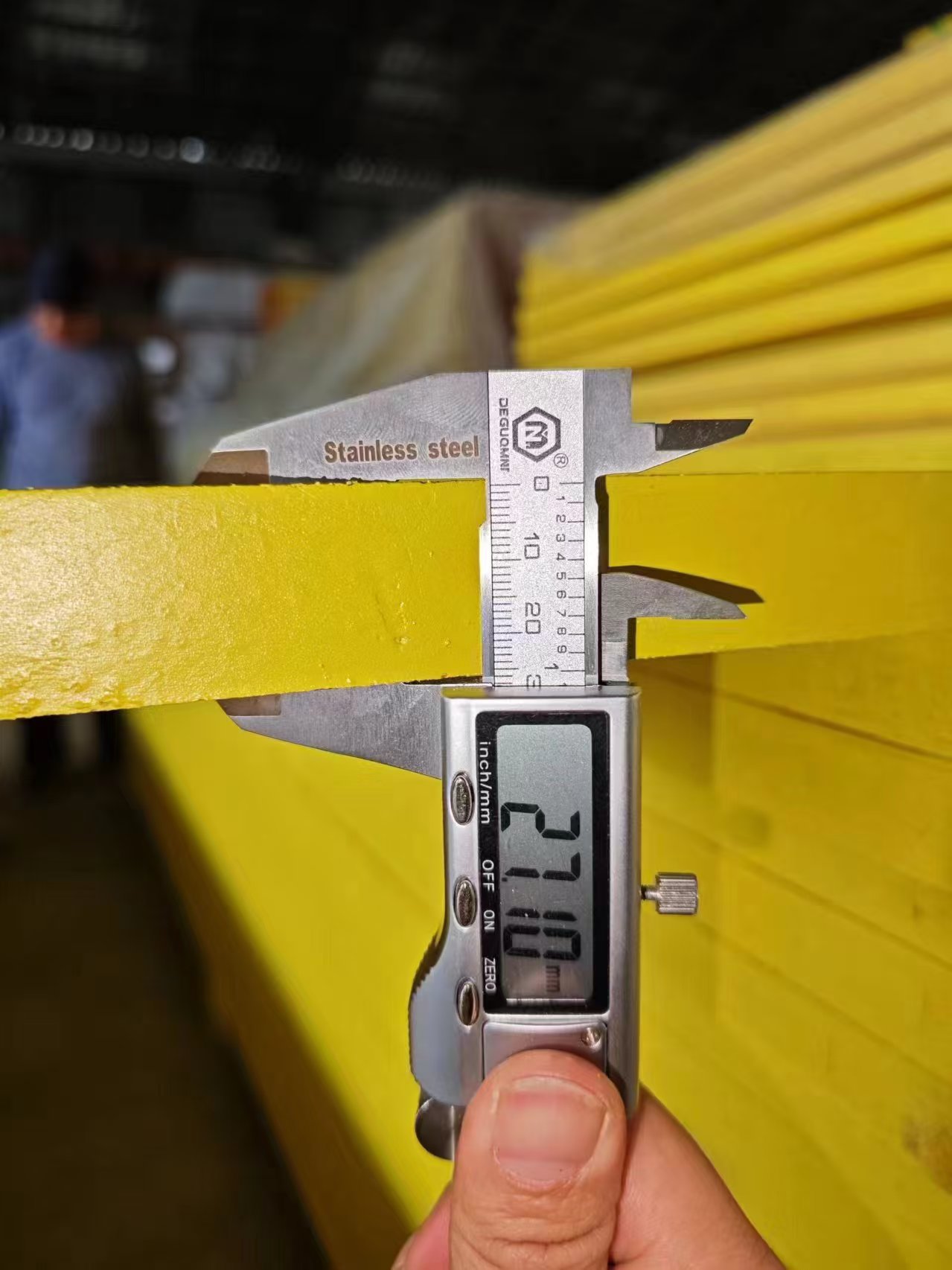

| Thickness | 21 mm / 27 mm |
| Width | 500 mm |
| Length | 1500 / 2000 / 2500 / 3000 mm |
| Weight | 10.5 kg/m² (21 mm) / 13.5 kg/m² (27 mm) |
| Bending Strength | 35 N/mm² (EN 789) |
| E-modulus | 8500 N/mm² (EN 789) |
| Edge | Water-resistant sealed edges / customized edge treatment |
| Packing | 21 mm — 104 pcs / 20'GP, 114 pcs / 40'HQ · 27 mm — 82 pcs / 20'GP, 88 pcs / 40'HQ |
| Application | Concrete formwork |
Applications
Concrete Slab Formwork
Suitable for floor and slab forming systems in residential, commercial and industrial construction.
Wall Formwork
Used as a forming surface for concrete walls and structural elements.
Beam & Column Formwork
Panels can be cut and assembled for beams, columns and other concrete structures.
Modular Formwork Systems
The 500 mm modular width is suitable for integration into various European formwork systems.
Contractors & Rental Companies
For professional contractors, distributors and formwork companies requiring reusable solid wood panels.
Production Gallery
Three-layer solid wood formwork panels — melamine resin-coated face, cross-laminated construction.

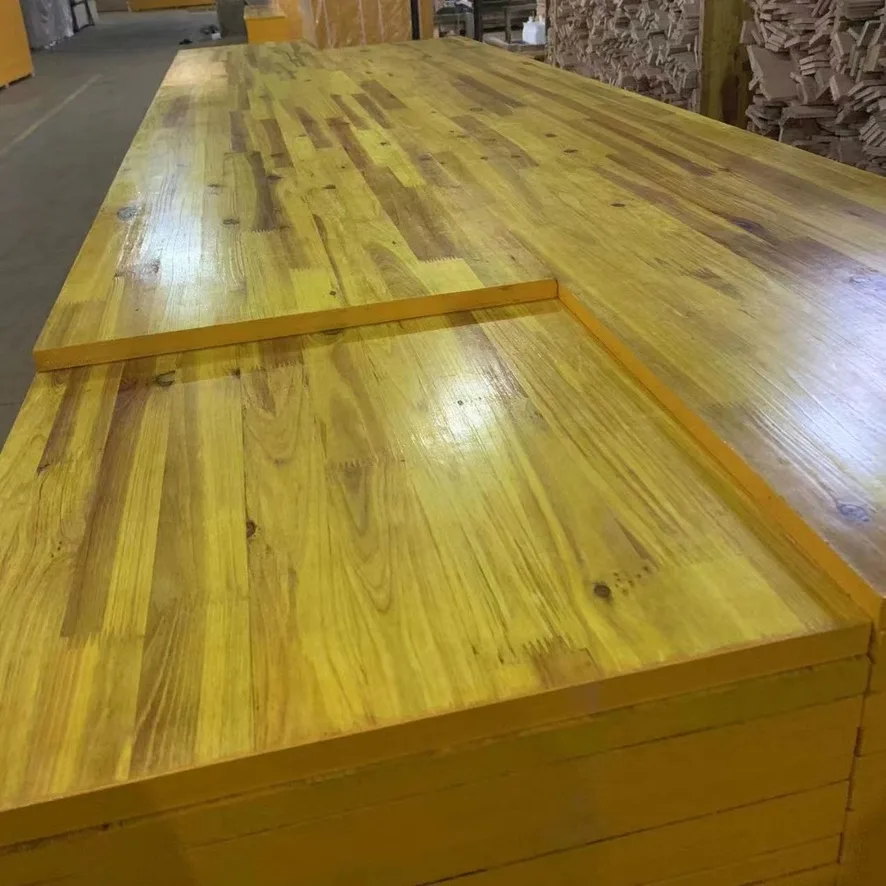

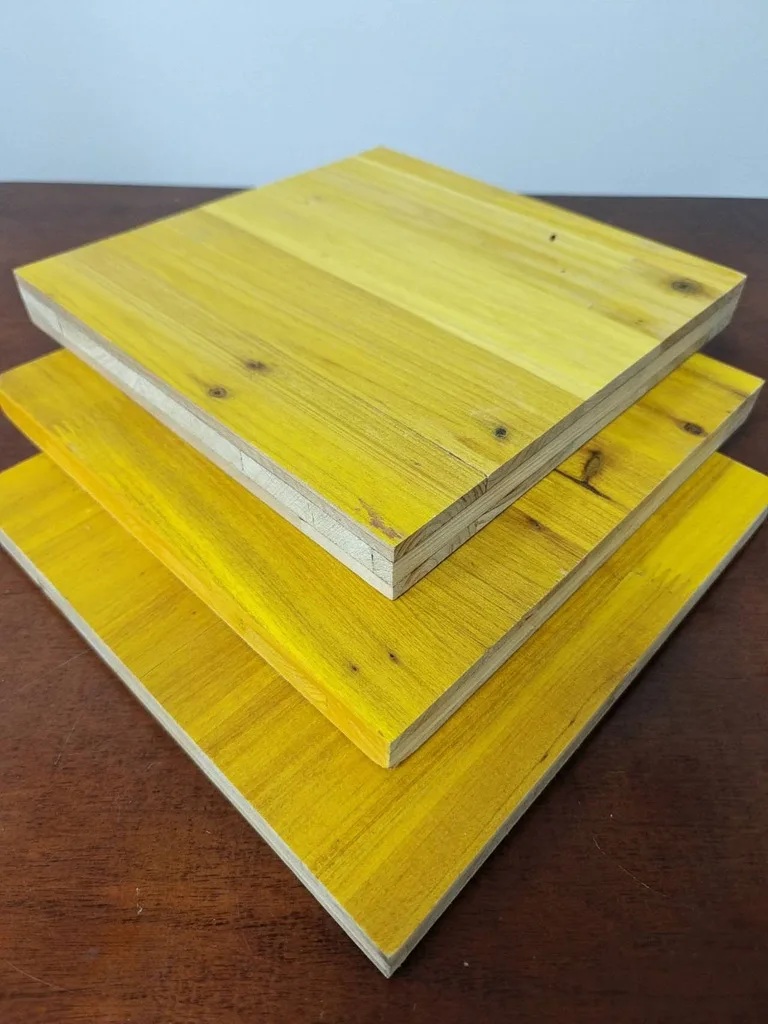

Melamine resin-coated face
Melamine resin-coated face

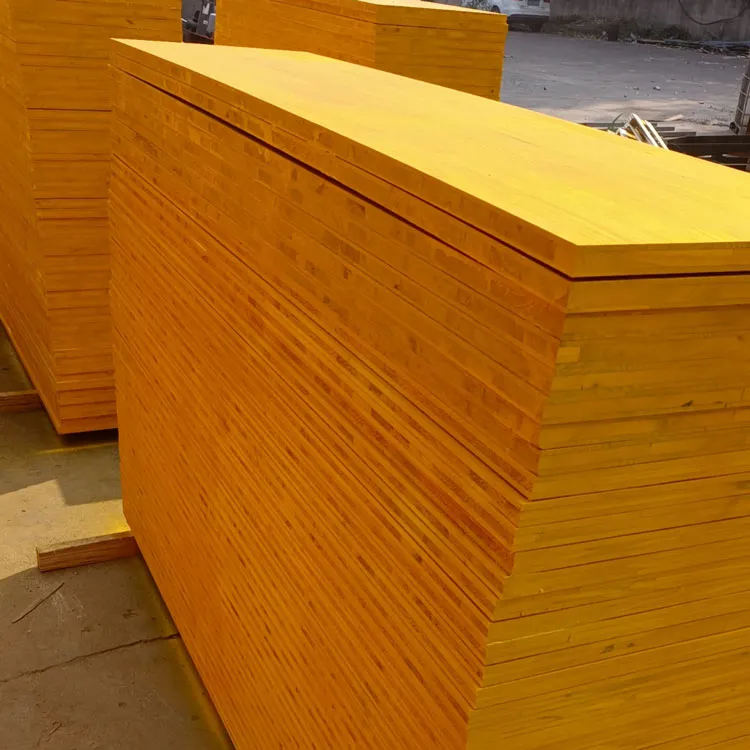

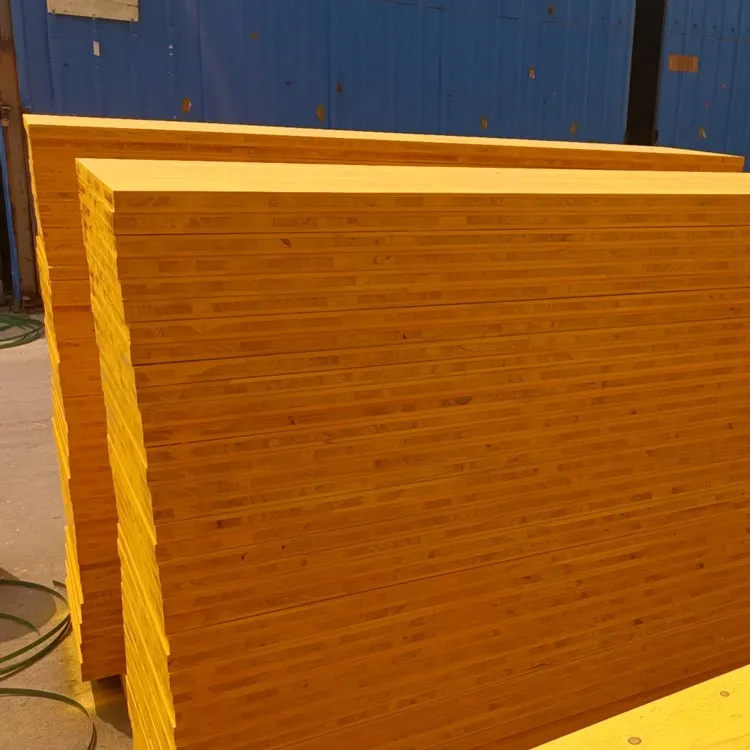

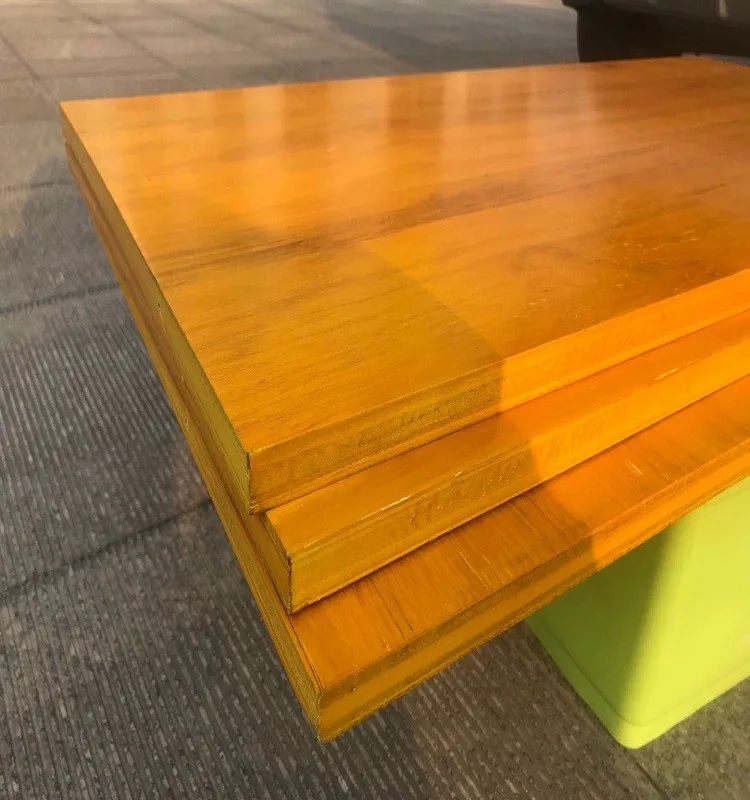

Stack — side profile

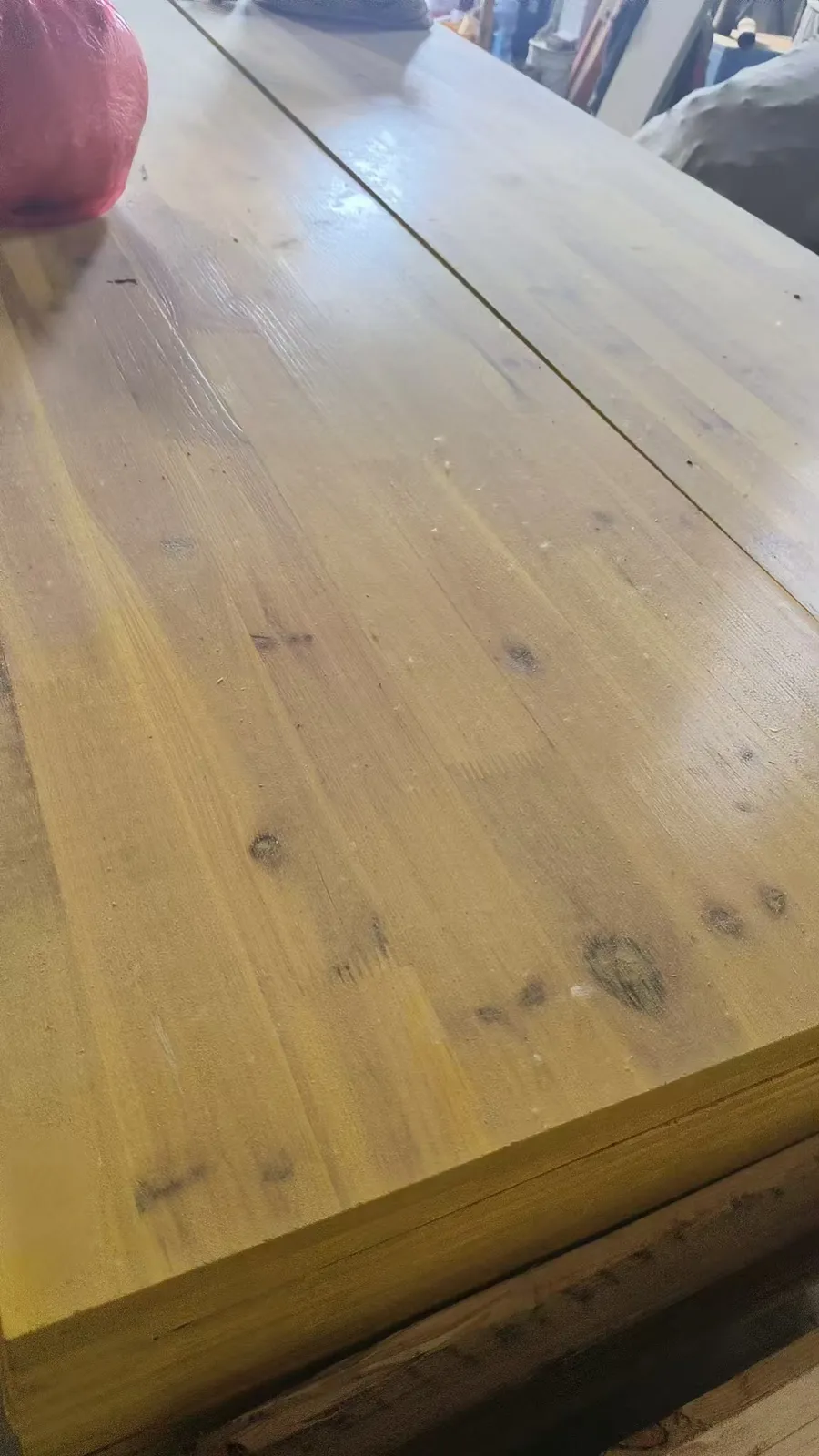

Stack — natural wood face

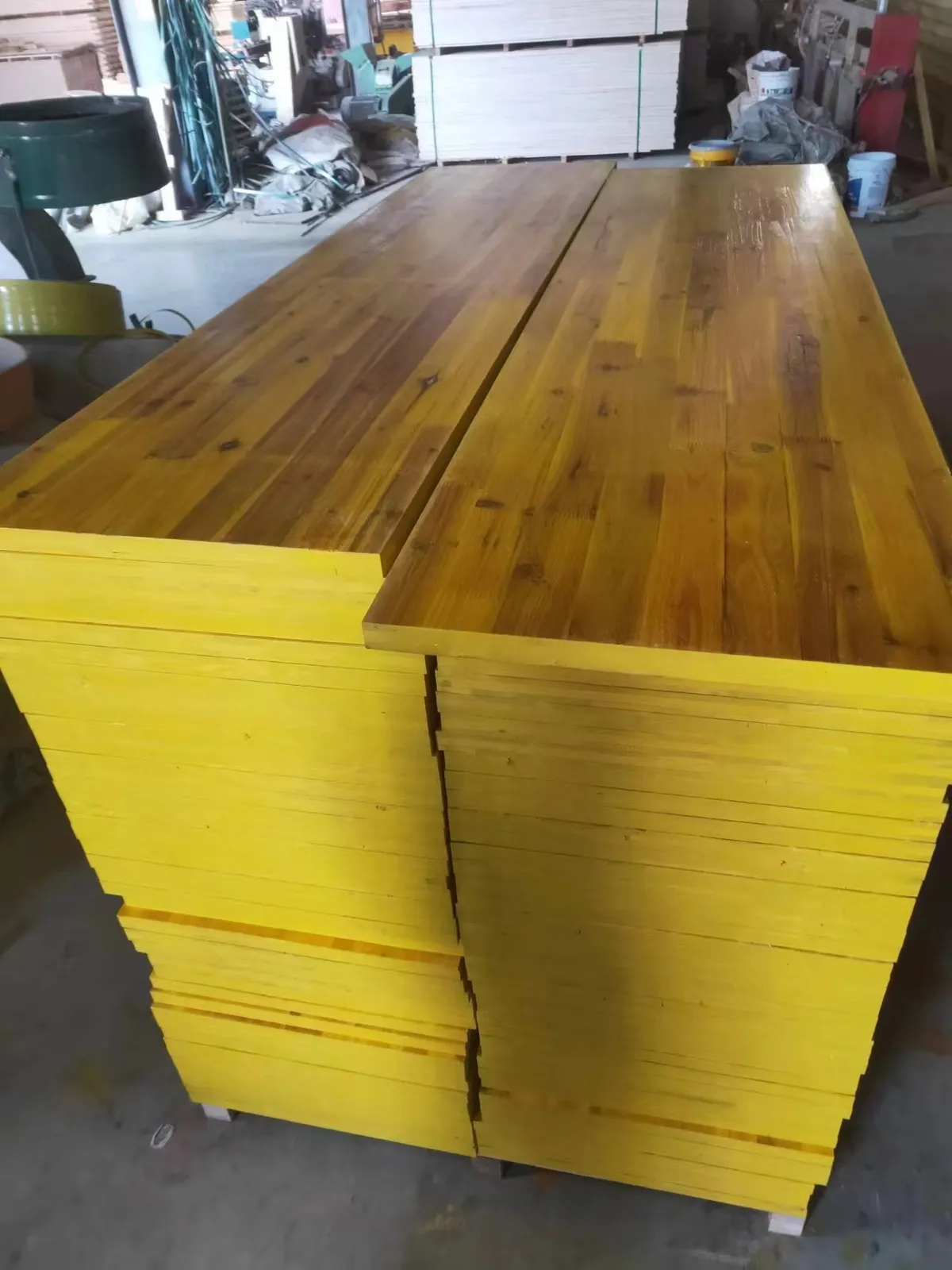

Stack — melamine resin-coated

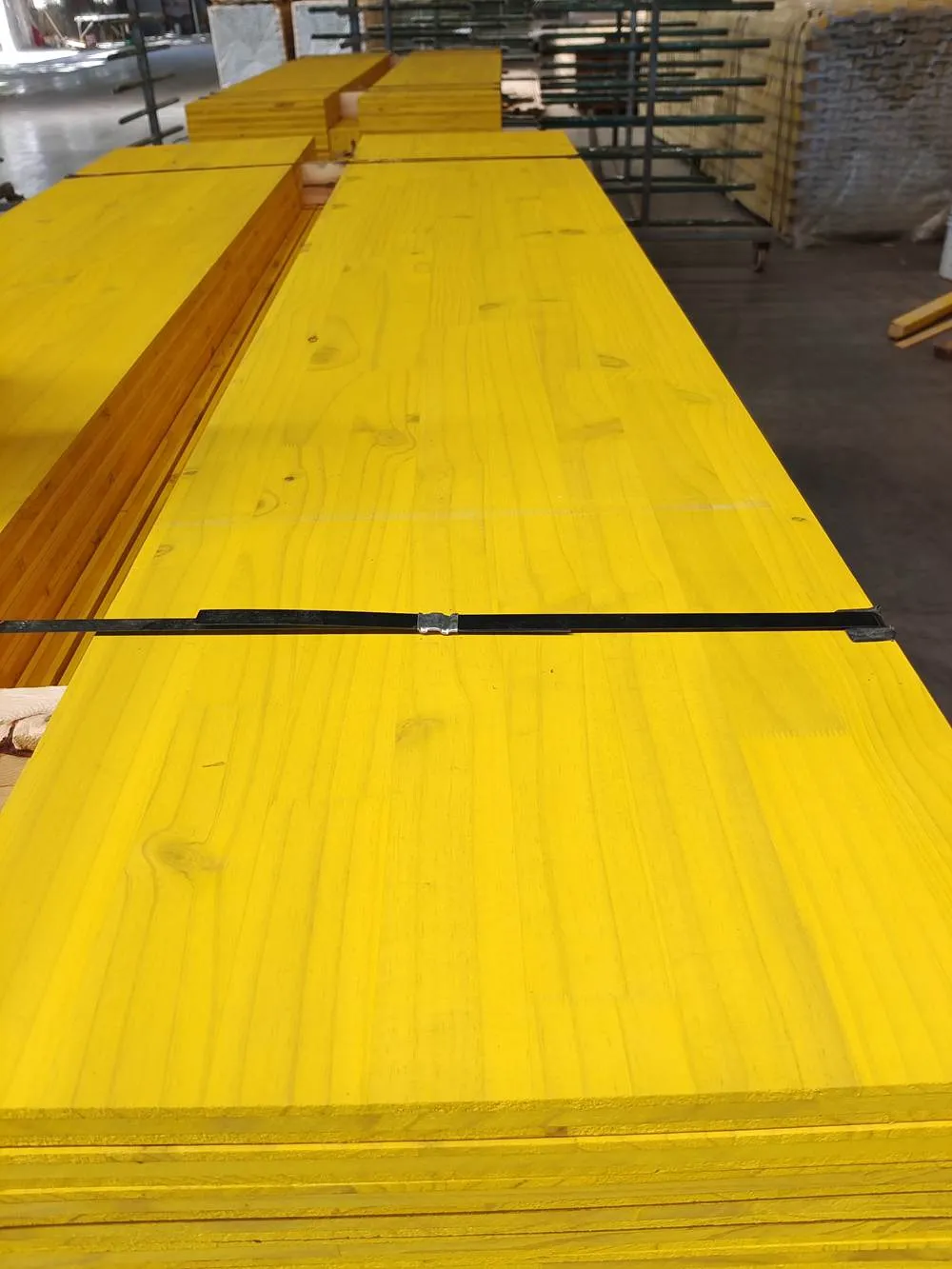

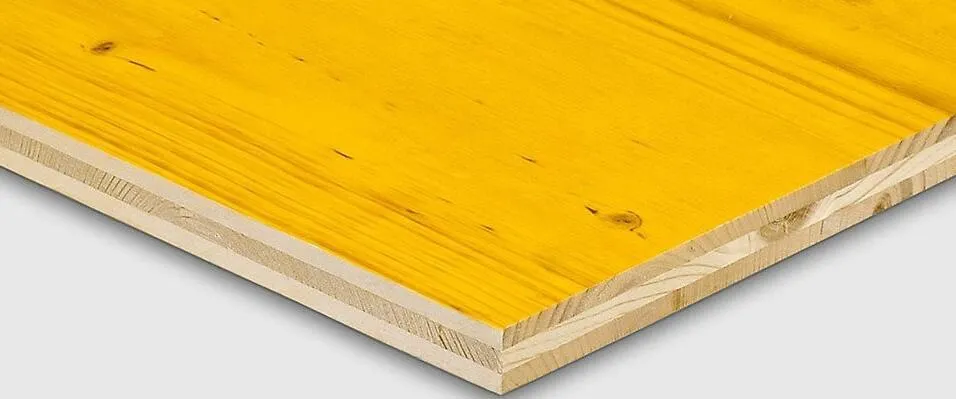

Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Three-layer solid wood formwork panel
Quality Parameters
For OEM and project orders, the following parameters can be controlled according to the agreed specification:
- Panel dimensions
- Thickness tolerance
- Moisture content
- Panel squareness
- Surface condition
- Bonding quality
- Edge sealing
- Packing and identification
Packing & Loading

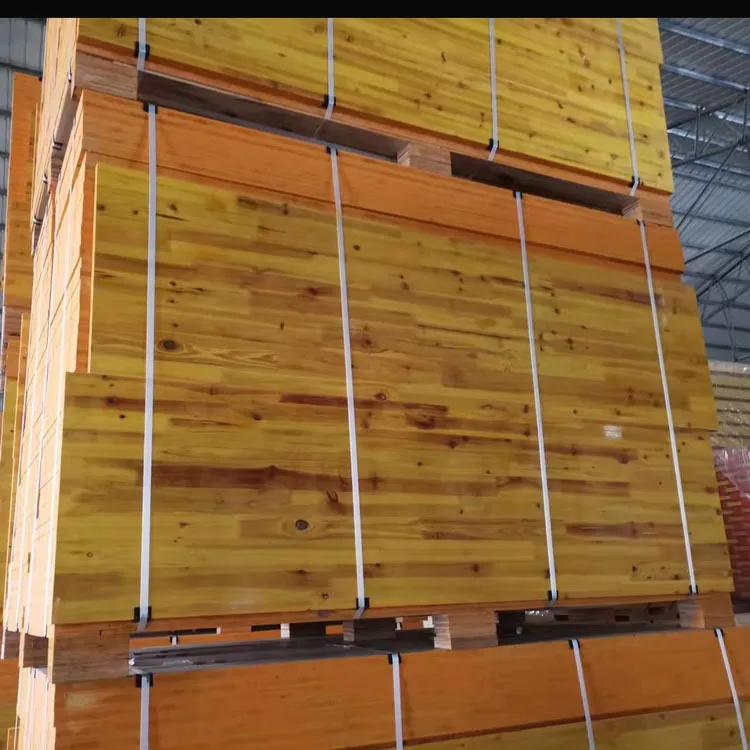

Panels can be supplied in export bundles suitable for container shipment. Typical packing options include bundled pallet packing, protective wrapping, steel or PET strapping, corner protection, shipping marks and customer-specific labels. Exact pieces per pack and container loading quantity depend on panel dimensions and customer packing requirements.
Ordering Information
When requesting a quotation, please provide:
- Panel size (e.g. 21 or 27 × 500 × 1500-3000 mm)
- Required quantity (pieces, packs or containers)
- Wood species requirement
- Surface coating requirement
- Edge sealing requirement
- Expected application and formwork system
- Reuse performance or concrete surface requirement
- Applicable technical standard or test requirement
- Packing and labeling requirement
