Ash Elements Production & Quality Control
Real production, inspection, sorting, packing and shipment process for kiln-dried Ash elements.
Project Overview
This project involved the preparation of kiln-dried Ash elements for furniture manufacturing. Dimensions, moisture content, straightness, surface grading, sorting and packing were controlled according to confirmed project requirements.
Project Images
These images show Ash finger-jointed panels and S4S elements from production. Additional process images are being prepared.
Ash FJ panel — clean grain, consistent width

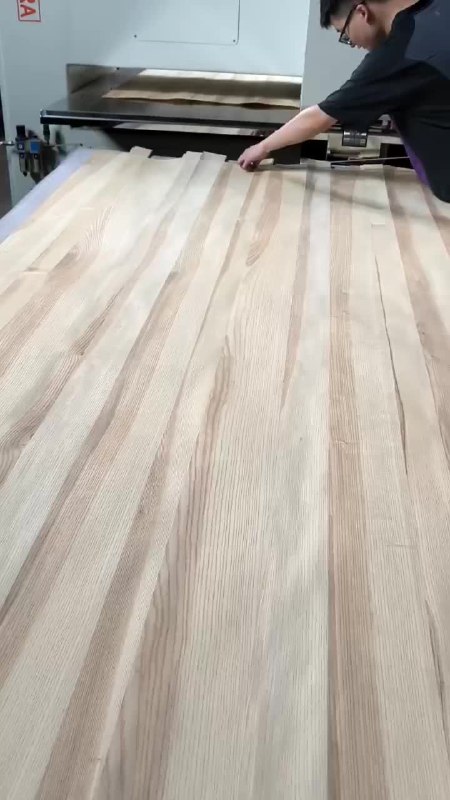

Ash finger-jointed panel — joint detail

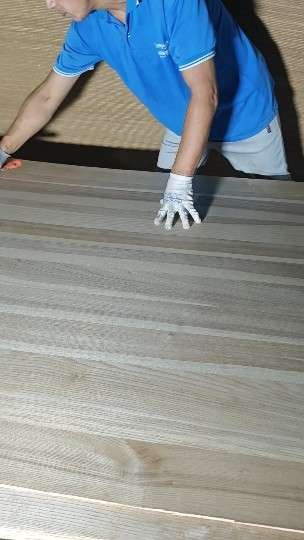

Ash S4S elements — dimension inspection
From Material PreparationFrom Material Preparation to Shipment
1. Material Selection
Kiln-dried Ash lumber selected according to product grade, dimensions and moisture requirements. Material inspected before machining.
2. S4S Machining
Elements machined on four sides to achieve required thickness, width and parallel edges. Consistent tolerance across the batch.
3. Dimension & Moisture
Thickness, width, straightness and moisture content checked according to order specification.
4. Sorting & Tally
Finished elements sorted by dimensions and lengths. Pallet identification and tally prepared for traceability.
5. Export Packing
Pallets reinforced and protected according to product dimensions and transport requirements.
What We Learned
- Consistent moisture control across the batch is critical for S4S precision
- Tally preparation with pallet-level traceability reduces inspection time at destination
- Packing reinforcement at pallet corners significantly reduces transit damage risk
- Sorting by length before packing improves handling efficiency
Send Your Ash Element Specification
Share your cutting list, dimension and quality requirements.
