H2O Beam
H20 timber formwork beams with spruce or LVL flanges and a 27mm plywood web — EN 13377 compliant, for concrete formwork and shoring applications.
Request a QuoteProduct Overview
The H2O beam is a lightweight, high-strength timber formwork beam used in concrete slab and wall forming systems. Its I-beam construction combines solid wood or LVL flanges with a plywood web, providing an excellent strength-to-weight ratio for repeated handling on construction sites. The beam is available in multiple standard lengths with end protection options to suit different formwork and shoring systems.

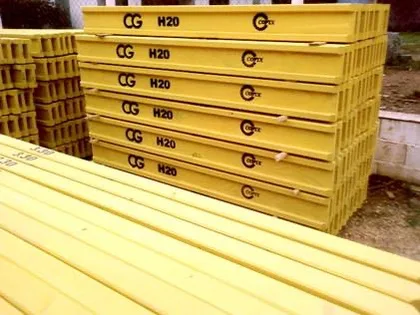

Product Gallery
Construction & Components
Flange (Cord)
Spruce solid wood or LVL flange of 40 × 80 mm section, providing the primary bending strength.
Web (Plywood)
27 mm thick 3-ply plywood web, bonded with melamine or phenolic adhesive for moisture resistance.

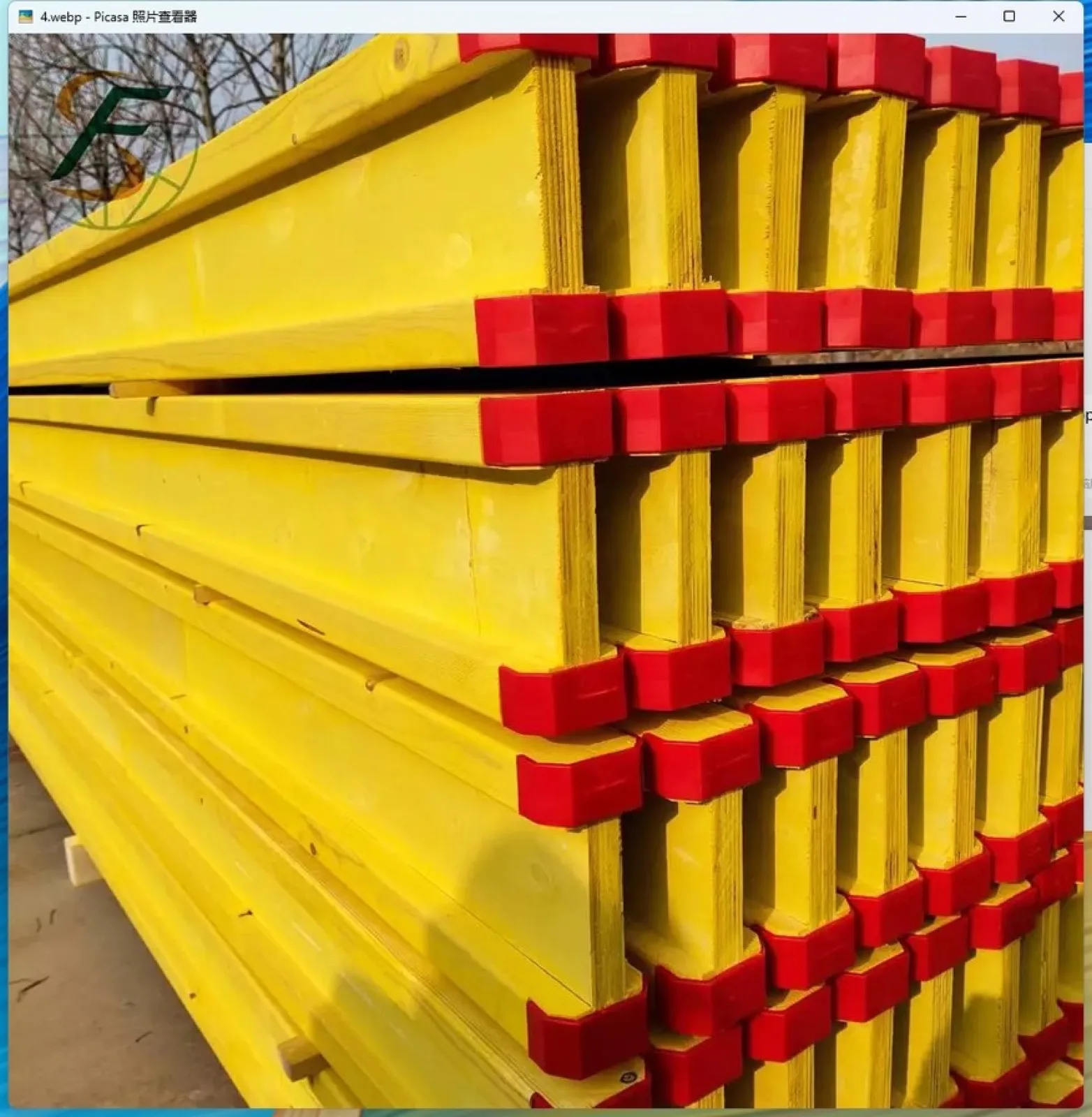

End Protection
Painted, plastic caps (red / blue / green) or metal caps to protect beam ends from damage and moisture.
Specifications
| Parameter | Details |
|---|---|
| Product Type | H2O timber formwork beam (H20 beam) |
| Flange Material | Spruce or LVL |
| Flange Section | 40 × 80 mm |
| Web Material | Plywood, 3-ply |
| Web Thickness | 27 mm |
| Web Adhesive | Melamine or phenolic glue |
| Standard Height | 200 mm (H20) |
| Length | 2 / 2.5 / 2.9 / 3 / 3.9 / 4 / 4.5 / 4.9 / 5.9 / 6 m, or custom |
| End Protection | Painted / plastic caps (red, blue, green) / metal caps |
| Standard | EN 13377 |
Applications
Concrete Slab Formwork
Primary and secondary beams in slab formwork and table form systems.
Wall Formwork
Wall forming systems for cast-in-place concrete construction.
Shoring & Support
Load-bearing support beams in shoring and propping systems.
Infrastructure Projects
Foundation and civil engineering works requiring reusable formwork beams.
Quality Control
- Flange straightness and section verification
- Web adhesive bond strength tested
- Dimensional accuracy (height, length, section)
- Moisture content control for stability
- End protection integrity check
- Load-bearing performance per EN 13377
Packing & Loading

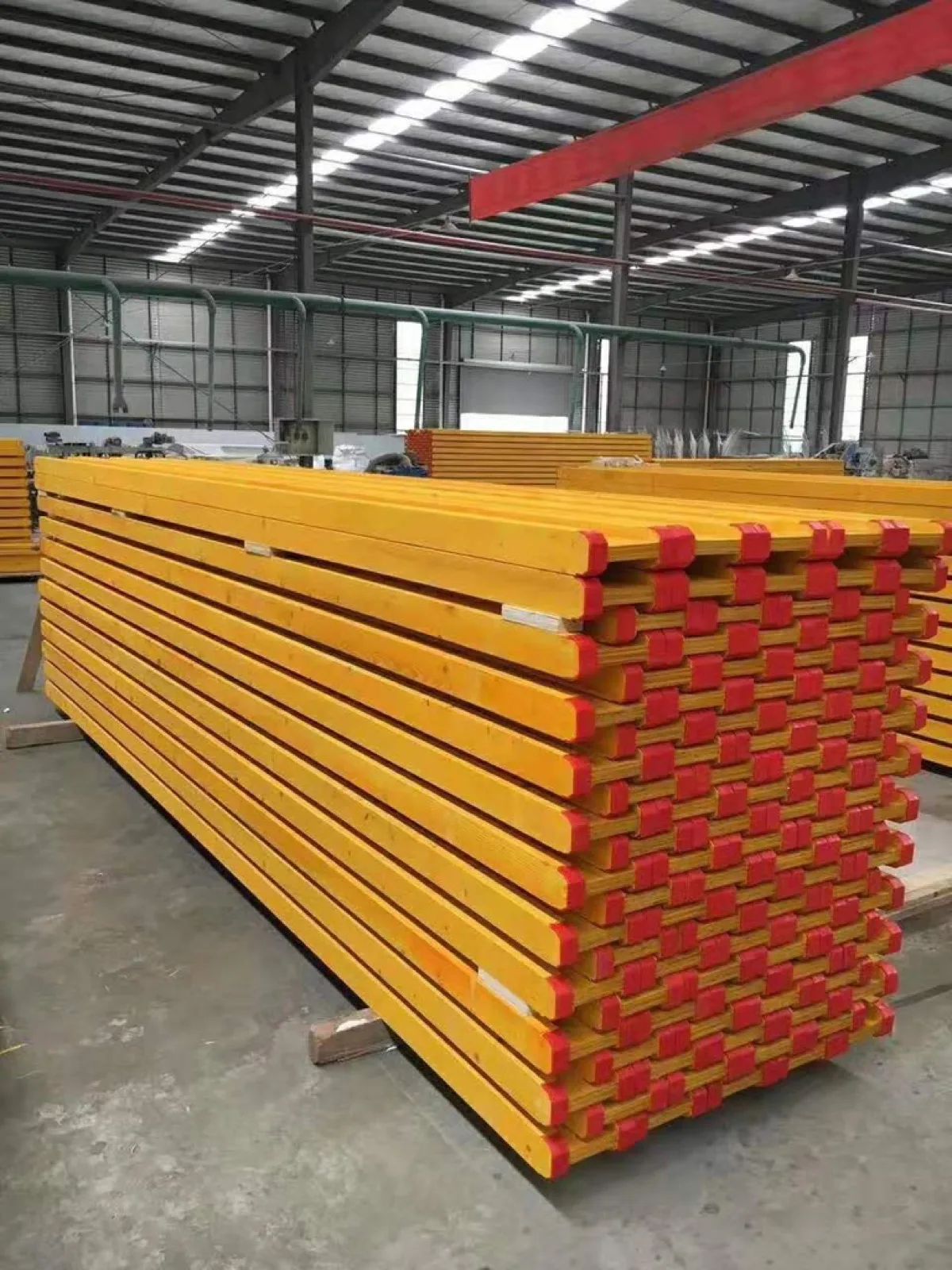

H2O beams are supplied in bundles suitable for container shipment. Standard packing includes bundle strapping, end protection and moisture-resistant wrapping. Exact pieces per bundle and container loading quantity depend on beam length and customer packing requirements.
Ordering Information
When requesting a quotation, please provide: required beam length, flange material (spruce / LVL), web adhesive type, end protection preference, quantity and any project-specific standard or testing requirements.
