Pet Furniture & Custom Components
Custom Cat Enclosures & Modular Pet Furniture
Custom cat cages, indoor cat enclosures and modular pet furniture developed from buyer drawings. We coordinate panel selection, CNC machining, clear-panel integration, hardware, KD / flat-pack engineering, prototype validation and export packing.
2. Concept visualization

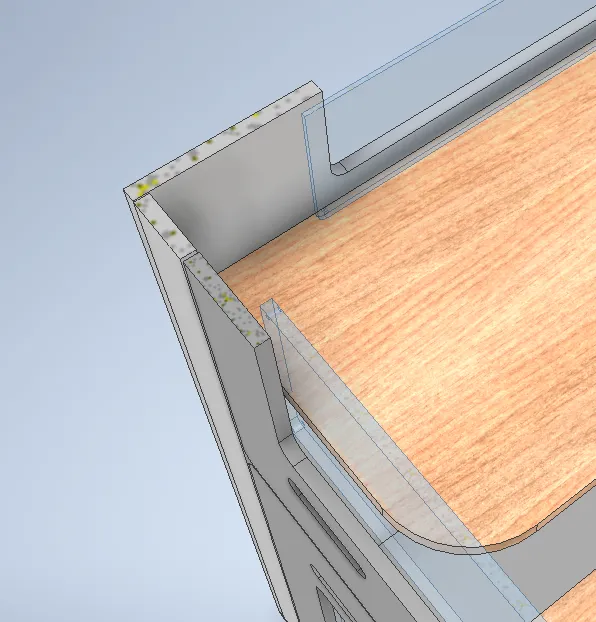

Customer Concept Renderings
These are effect / concept images supplied during design development. They show intended form and internal arrangement and are not presented as finished-product photos.
3. Real prototype
Real Product Photos

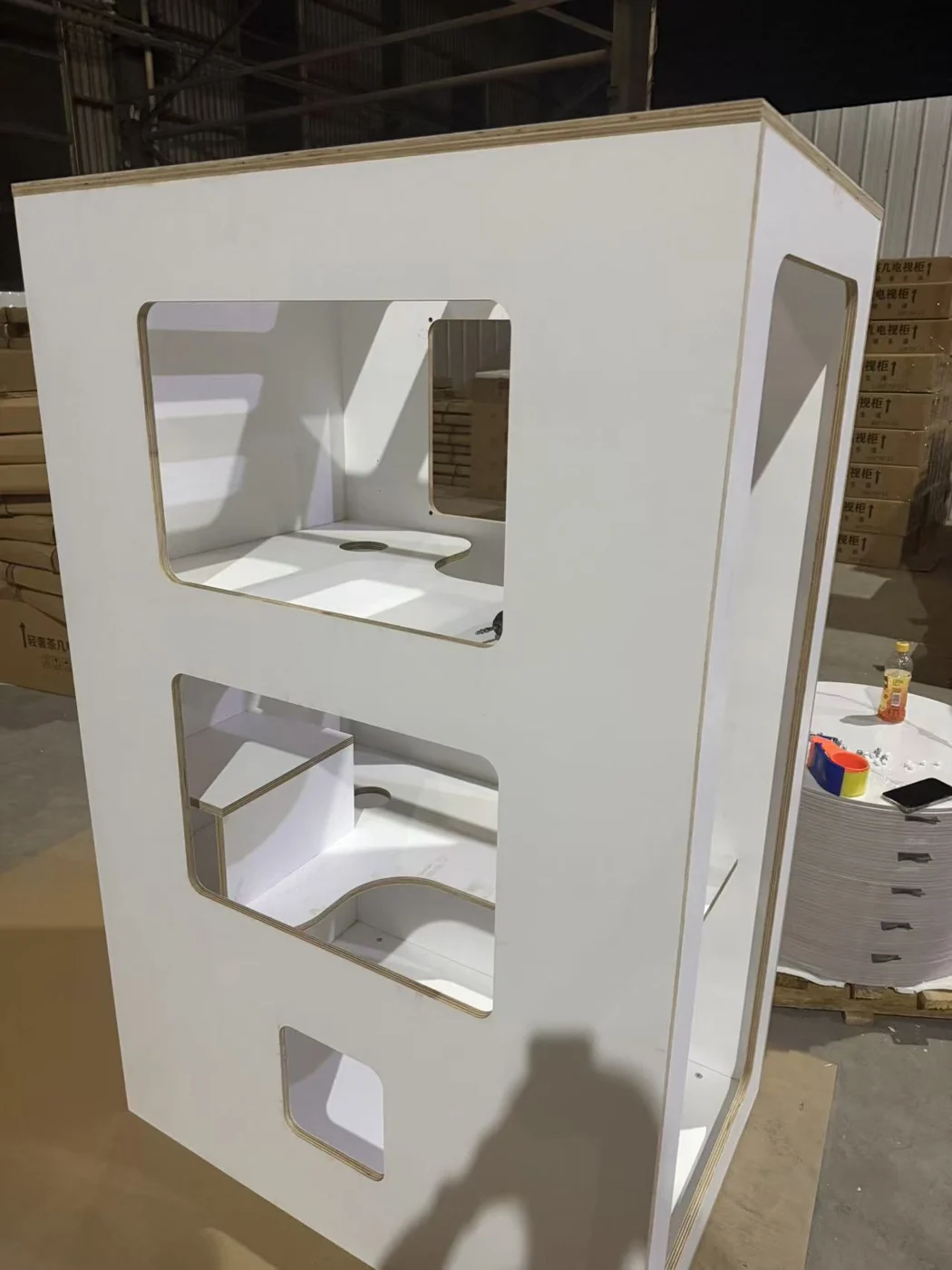

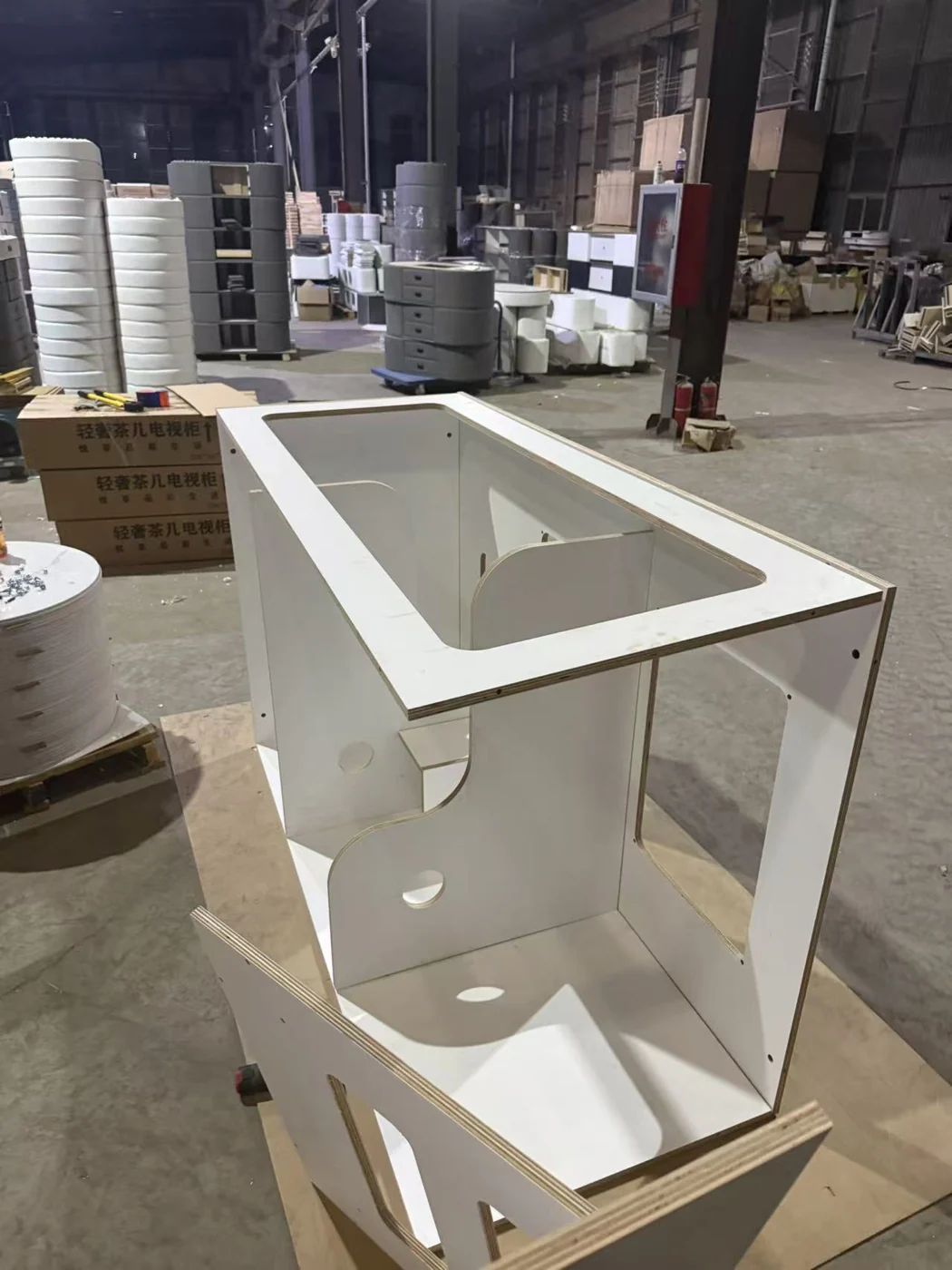

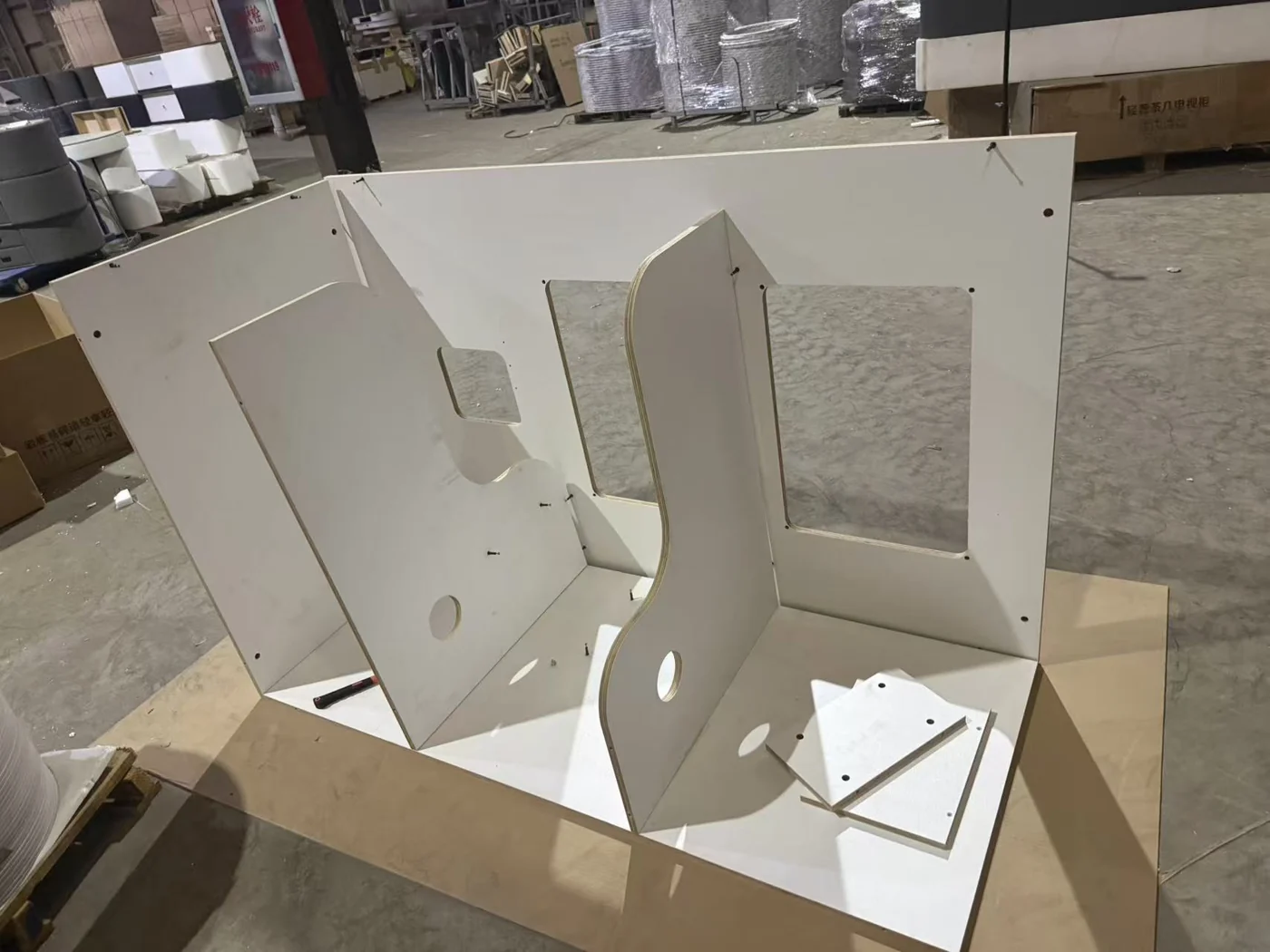

Actual workshop photos from prototype manufacturing. Three non-duplicate views are shown: exterior structure, open internal structure and assembly-stage construction.
A validated development direction
From a buyer drawing to a repeatable product.
Reference Construction
A real project configuration is shown as a capability reference. Final materials and dimensions are confirmed project by project.
Melamine-Faced Plywood
15 mm white melamine-faced plywood was used as the reference panel concept, with exposed plywood ply edges retained where the design benefits from a furniture-like appearance.
Clear Panel Integration
Clear acrylic can be integrated into CNC-machined openings with ventilation gaps and fixing details reviewed during prototyping. A 10-12 mm clear-panel reference was evaluated during the original development.
CNC & Furniture Details
Rounded exposed edges, CNC-cut slot handles, openings, notches and internal panels can be machined directly from approved production drawings.
KD / Flat-Pack Engineering
Connection methods and hardware are selected around strength, clean appearance, repeatability, end-user assembly and efficient export packing.
Reference values describe one development direction, not a fixed off-the-shelf specification.
What Can Be Customized
| Item | Custom Development Options |
|---|---|
| Product type | Indoor cat housing / cat enclosure / modular pet furniture |
| Dimensions | Custom to buyer PDF, CAD or STEP drawing |
| Panel material | Melamine-faced plywood as a reference; other suitable plywood or panel constructions reviewed by application |
| Clear panels | Clear acrylic / PMMA and other suitable transparent panel options according to stiffness, visibility and design requirements |
| Edge treatment | Rounded or router-finished exposed plywood edges; straight edges at internal assembly joints where appropriate |
| Doors & handles | Hinged access doors, latches / locks and CNC-cut slot handles or project-specific alternatives |
| Ventilation | Designed gaps, perforated/openwork panels and shelf notches according to the enclosure layout |
| Internal modules | Shelves, hideaway space, passages, scratching post and removable / cleanable elements |
| Assembly | KD fittings, screws, inserts, cam-type fittings or a project-specific combination after prototype review |
| Packing | Flat-pack export packing; package size, gross weight and CBM confirmed after final construction is approved |
Prototype-to-Production Workflow
For custom pet furniture, development discipline matters more than a generic catalog specification.
Pet-Furniture Details We Can Engineer
Ventilation Around Clear Panels
Clear-panel openings, shelves and partitions can be coordinated so natural ventilation paths remain open.
Hideaway & Activity Zones
Internal shelves, concealed resting areas and cat passages can be adjusted around animal behavior and cleaning access.
Scratching Post Integration
Wood posts and durable scratching rope can be integrated into the cabinet structure with fixing details developed during prototyping.
Clean Front & Hardware Layout
Hinges, latches, locks, screw positions and CNC handles can be coordinated to keep the front appearance clean and practical.
Quality Checks Before Packing
- Production drawing and revision status confirmed before batch cutting
- Overall dimensions, CNC opening positions and internal shelf locations checked
- Edge finish, surface quality and exposed plywood layers inspected
- Clear-panel fit, ventilation space and fixing details verified
- Door movement, latch / lock function and visible hardware checked
- Trial assembly used to validate KD connections before flat-pack export packing
For a useful quotation
What to Send With Your Cat Enclosure RFQ
The clearer the starting information, the faster we can review manufacturability and identify missing details before quoting.
- Overall drawing or PDF, plus CAD / STEP files when available
- Required external dimensions and key opening / shelf dimensions
- Preferred panel material, surface finish and clear-panel requirement
- Hardware, door, latch / lock and assembly expectations
- Target order quantity and whether KD / flat-pack packing is required
- Destination country or port so packing and shipment planning can be discussed
Related capabilities: Furniture CNC Components · Melamine Panels · Full Product Catalog
Buyer questions
Custom Cat Enclosure FAQ
Is this a fixed standard cat cage?
No. The project shown here is a manufacturing reference. Dimensions, openings, internal platforms, materials and hardware can be developed from the buyer's own drawing.
Can you build a prototype before batch production?
Yes. For a new custom structure, prototype production can be used to check machining, fit, assembly, visible surfaces and requested revisions before repeat production.
Can the enclosure be supplied flat-pack?
Yes. KD / flat-pack construction can be reviewed during development so connection methods, hardware and packing work together with the final design.
Can materials and clear panels be changed?
Yes. The displayed build is one reference configuration. Panel construction, finish, transparent-panel specification and hardware are confirmed project by project.
Have a cat enclosure or pet-furniture drawing?
Send the drawing, target quantity and key material requirements. We can review manufacturability first and build the quotation around the actual construction.
