Plywood & Construction

Bamboo Plywood Formwork

Dense, laminated bamboo-based panels for bridge, viaduct, tunnel and heavy-duty concrete formwork applications.

Product Overview

Bamboo Plywood Formwork is manufactured from laminated bamboo curtains, bamboo mats or other engineered bamboo layers bonded under heat and pressure to form a dense construction panel.

Unlike conventional film faced plywood based on poplar, eucalyptus or birch veneer, bamboo formwork uses bamboo as the principal structural panel material. The laminated bamboo construction makes this type of panel particularly suitable for projects where panel rigidity, dimensional consistency and resistance to demanding site conditions are important.

For bridge and civil engineering applications, the panel can be supplied with a smooth resin-coated surface and sealed edges to help protect the panel during concrete casting, cleaning and repeated handling. Final panel construction, thickness, surface treatment, bonding specification and mechanical performance should be confirmed according to the customer's formwork design and project requirements.

Typical Specifications

Product	Bamboo Plywood Formwork
Main Material	Bamboo curtains / bamboo mats / engineered bamboo layers
Construction	Multi-layer laminated bamboo
Standard Size	1220 × 2440 mm
Common Thicknesses	12 / 15 / 18 mm
Other Thicknesses	Available according to project specification
Surface	Smooth resin-coated / film-faced surface
Surface Color	Brown / dark brown / customized
Bonding	Water-resistant bonding system according to order specification
Edge	Sealed edges
Application	Concrete formwork
Custom Production	Size, thickness, structure, surface and packing according to order

Typical bridge project specifications should always be confirmed against the actual support spacing, concrete pressure and formwork design before production.

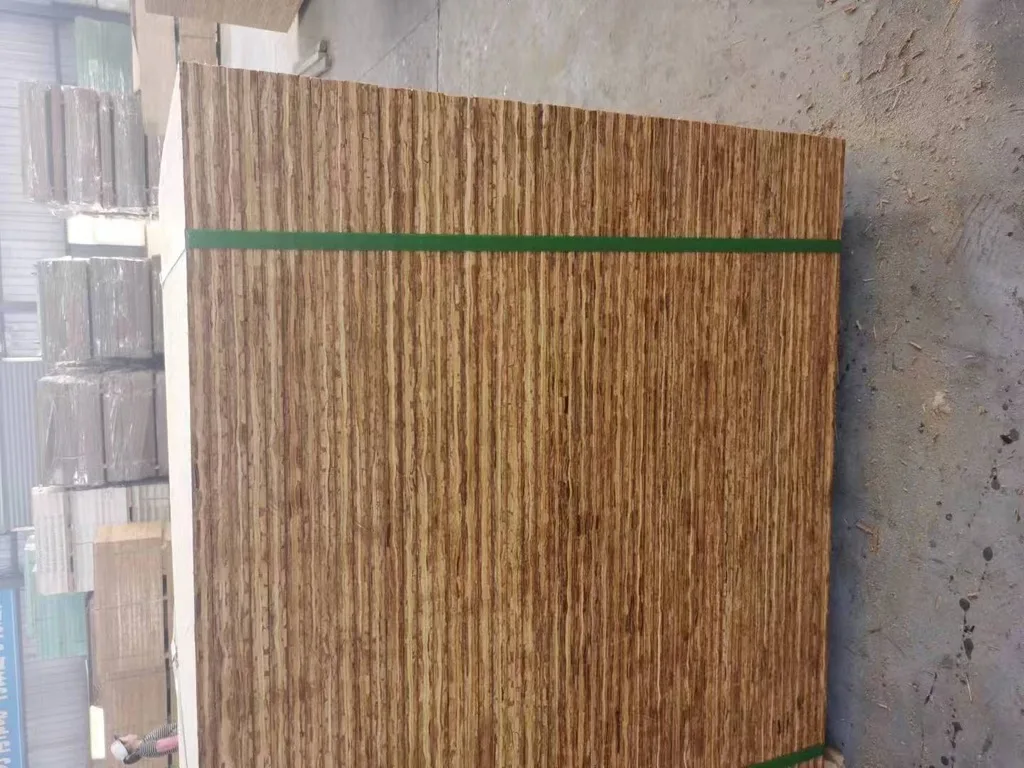

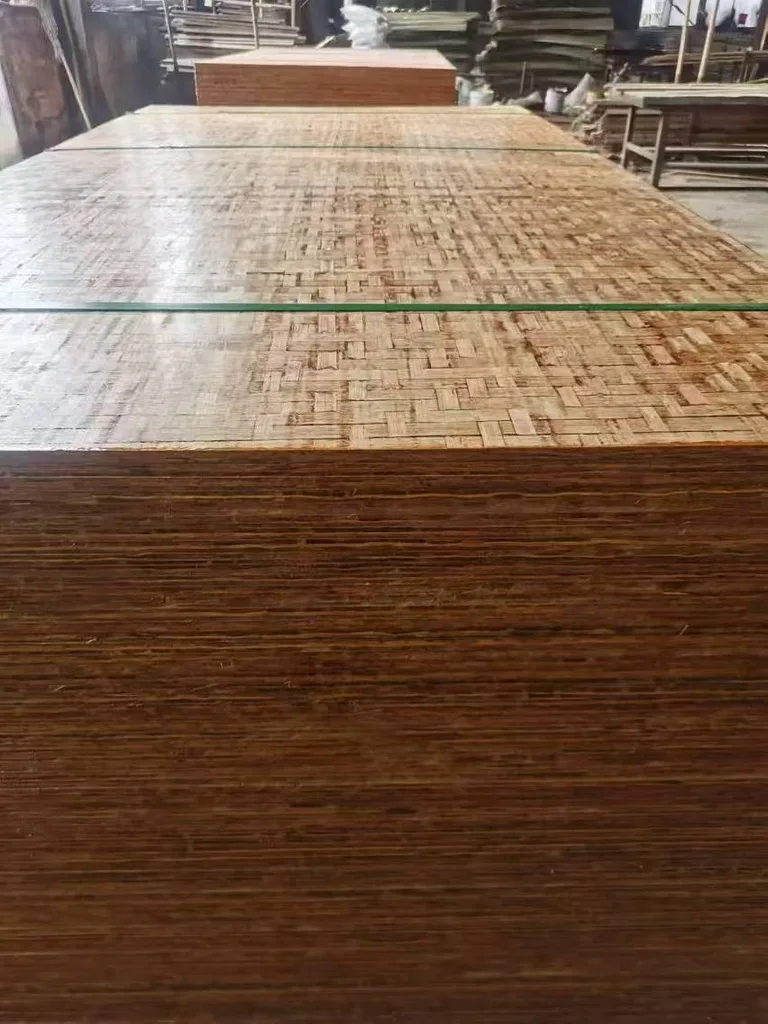

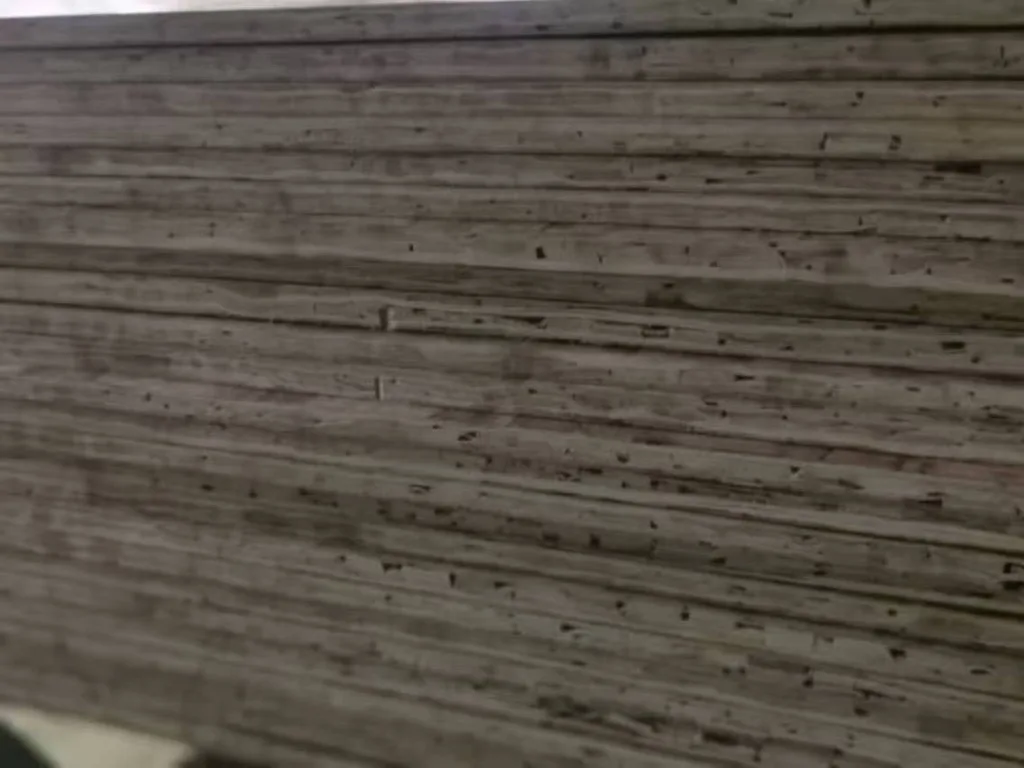

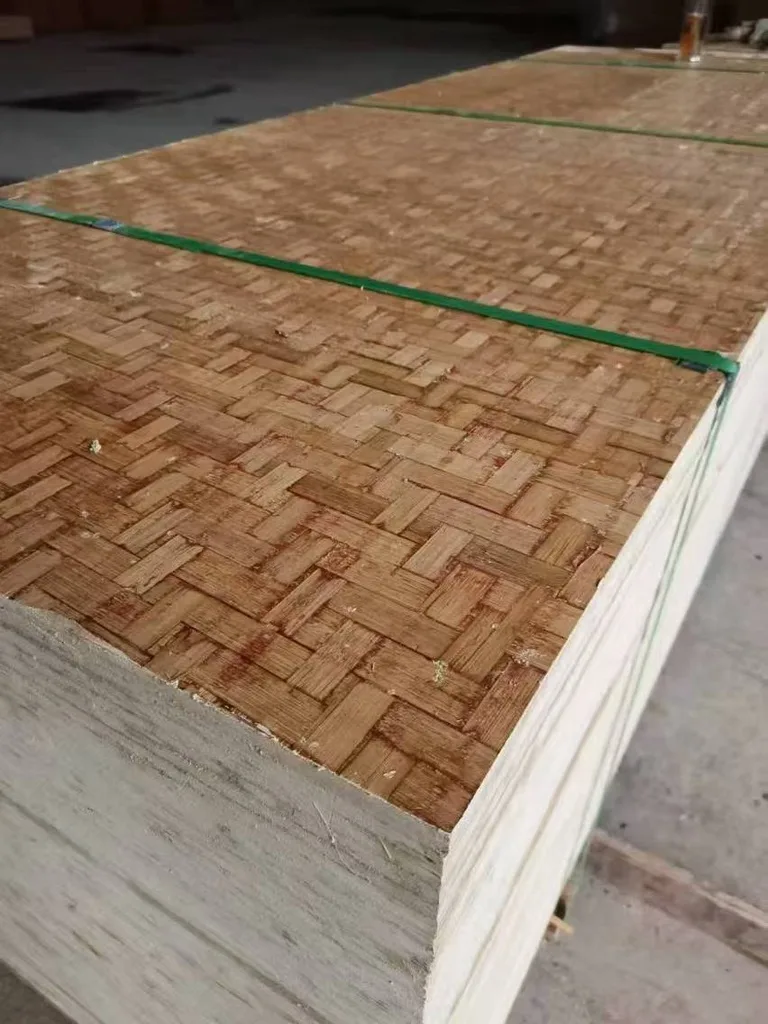

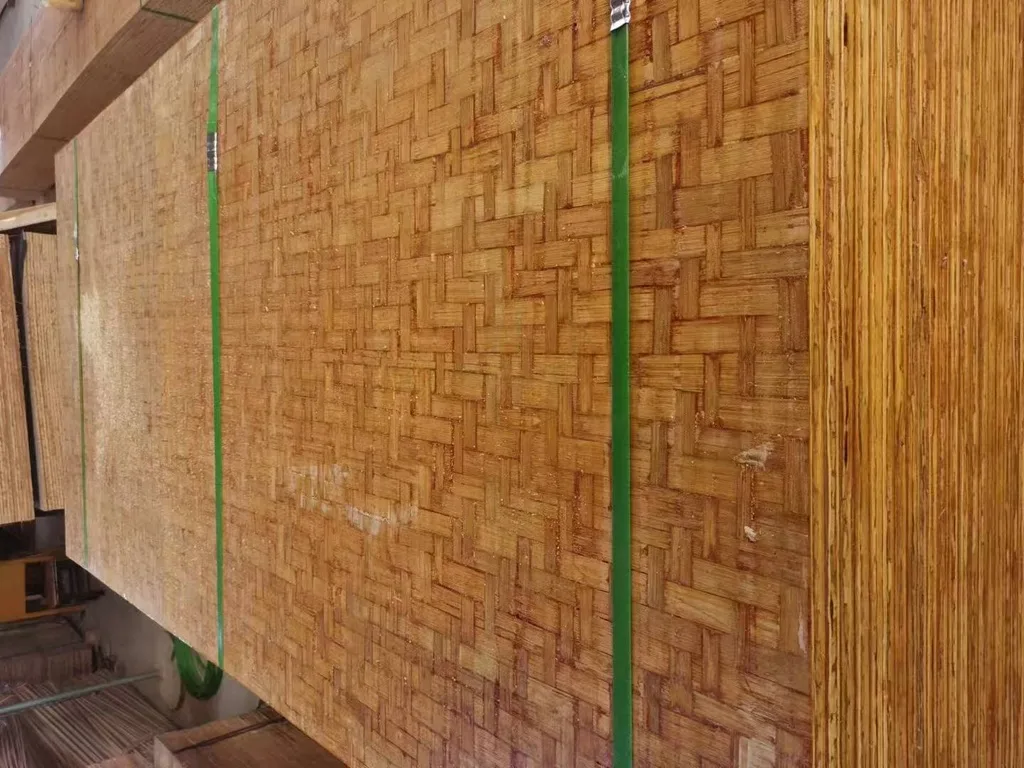

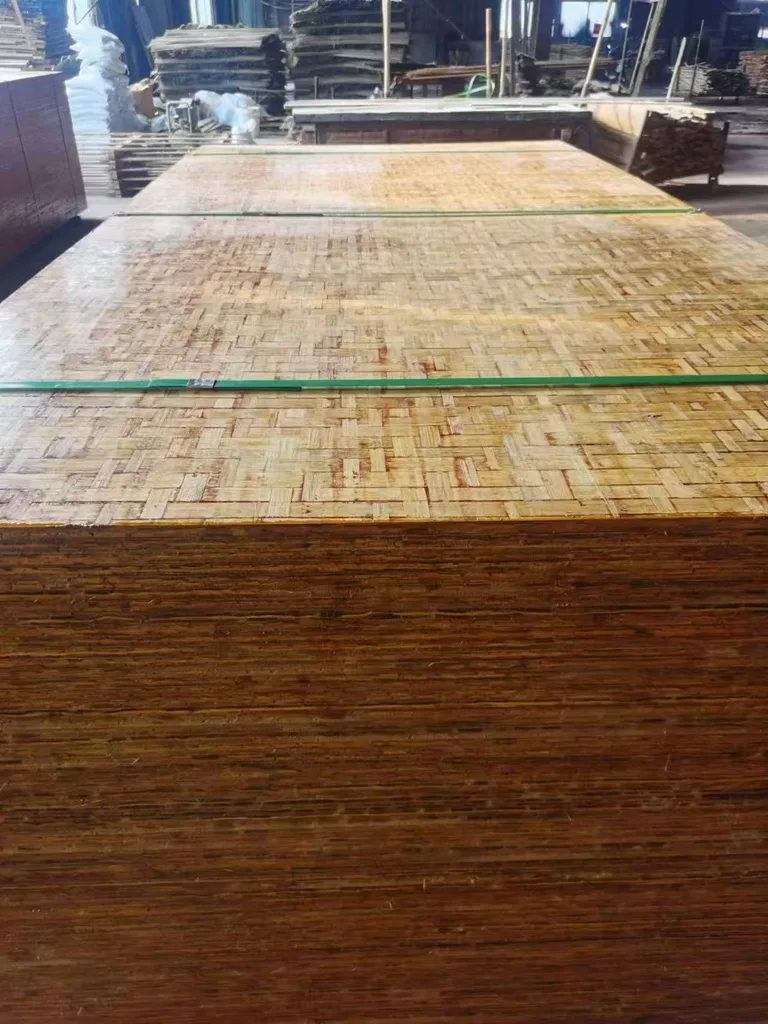

Product Gallery

Bamboo Panel Construction

Several bamboo formwork constructions can be developed depending on the required application.

Bamboo Curtain Construction

Bamboo strips are processed into curtain-like layers and laminated in multiple directions to form the structural body of the panel.

Bamboo Mat / Curtain Composite

Bamboo mats and bamboo curtain layers can be combined to balance surface quality and panel performance.

Reinforced Bamboo Construction

For demanding applications, the internal lay-up can be adjusted according to required panel thickness and mechanical performance.

The exact lay-up should be confirmed during sample development or according to an approved production specification.

Surface Options

Smooth Resin-Coated Surface

For general concrete forming and to help facilitate formwork release and cleaning.

Film-Faced Surface

A protective resin-impregnated surface layer for additional surface protection.

Project-Specific Surface

Surface type, color and finish customized to the concrete finish and site conditions.

Both panel faces and edges should be inspected before shipment.

Bridge Formwork Applications

Bridge deck formwork
Box girder formwork
Bridge beam formwork
Pier and column formwork
Abutment formwork
Viaduct construction
Overpass construction
Culvert formwork
Cast-in-place concrete structures
Temporary concrete forming systems

Other Civil Engineering Applications

Tunnel Construction

Concrete forming in tunnel and underground infrastructure projects.

Dam & Hydraulic Works

Concrete surfaces in dams, retaining structures and related engineering works.

Metro & Underground Works

Cast-in-place concrete structures in underground and transportation projects.

Heavy Concrete Construction

Beams, columns, walls, foundations and other heavy concrete structures.

Key Features

Bamboo-based laminated construction
Large panel format — fewer joints
Smooth concrete forming surface
Water-resistant bonding options
Factory edge sealing
On-site workability — cut and adapt
Reusable formwork

Quality Control

Typical inspection points include:

Panel thickness, length and width
Thickness tolerance and squareness
Panel flatness
Bamboo lay-up and bonding condition
Delamination
Surface quality and coating
Edge sealing and moisture condition
Density and bending properties (if specified)
Packing and product identification

Packing & Loading

Bamboo formwork panels can be supplied in export-grade pallet packing, including strong wooden pallet base, protective wrapping, waterproof covering, steel or PET straps, corner protection, shipping marks, batch identification and customer-specific labels. Container loading quantity depends on panel size, thickness, density and pallet configuration.

Start With Your Project Specification

Send us your panel size, thickness, quantity, application, support arrangement and required performance.
